BULLETPROOF glass

Have you ever wondered if there's truly such a thing as a window or door that can stop a bullet? While James Bond might make it seem like a simple feat, the answer is a bit more nuanced. There isn't a single material that's completely impenetrable, but there are advanced glass solutions that offer exceptional bullet proof protection. At Ray Fit Out, security is our top priority, and that's why we provide a wide range of bullet-resistant glass options for your windows and doors.

FLOOR TO CEILING HIDDEN DOOR IN ENGINEERED VINEER

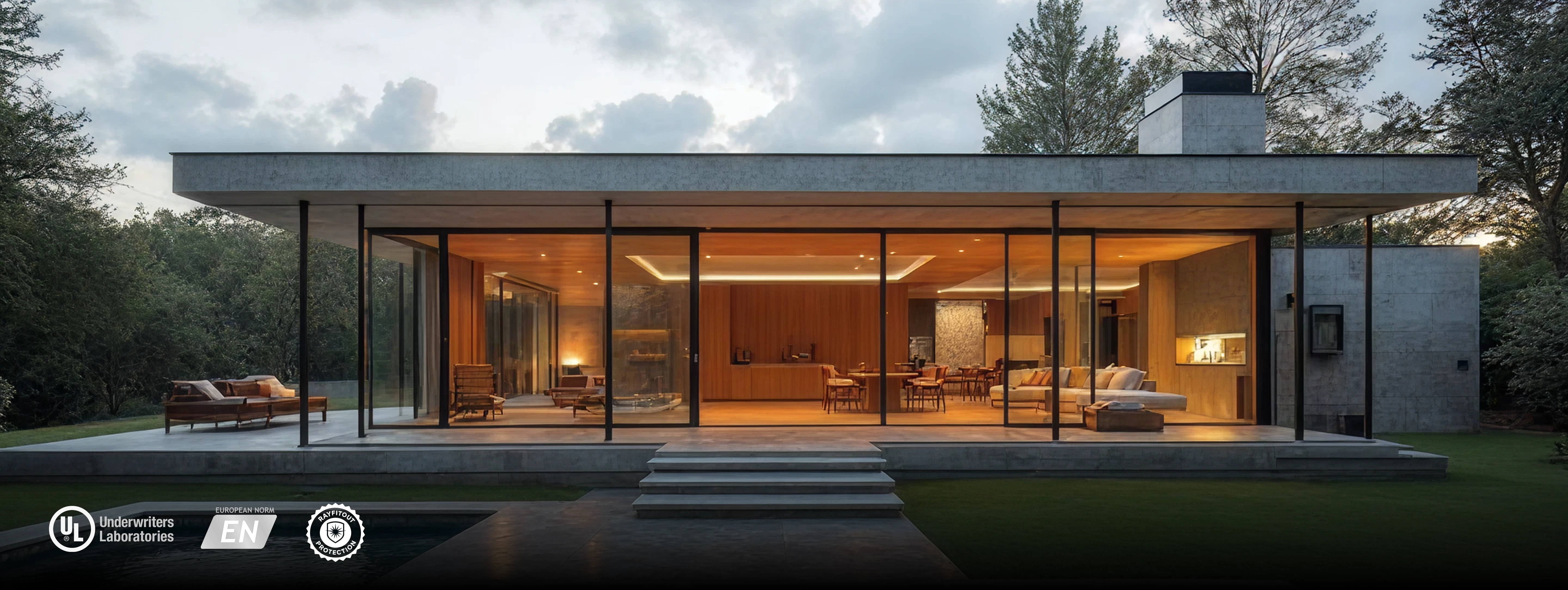

Underwriters Laboratories logoEuropean Norm EN certification mark for Ray bulletproof glass, shown as a small label badgeCircular shield emblem badge marking bulletproof glass protection for Rayfitout interior fit out security glazing
A modern residence with expansive bullet-resistant glass walls

360 Protection Ray Bullet Proof Glass

Rayfitout’s bulletproof glass is a specially designed and constructed material that offers varying levels of protection against projectiles. As a leading bulletproof glass company, we engineer our solutions using multiple layers of strong plastics like polycarbonate, sandwiched between treated glass layers. Upon impact, the bullet is absorbed and dispersed by the different layers, preventing it from penetrating through the entire material. There are different levels of bullet resistance, depending on the thickness and composition of the glass. These levels are typically rated according to international standards.

DISCOVER MORE

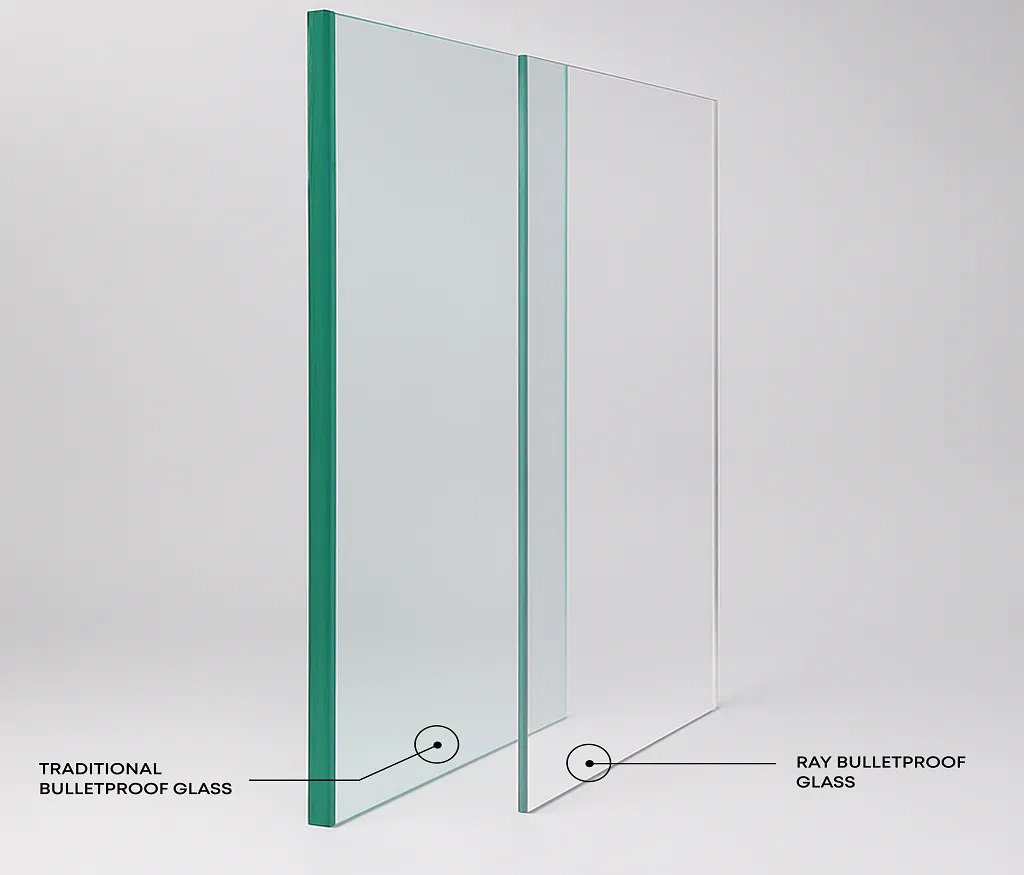

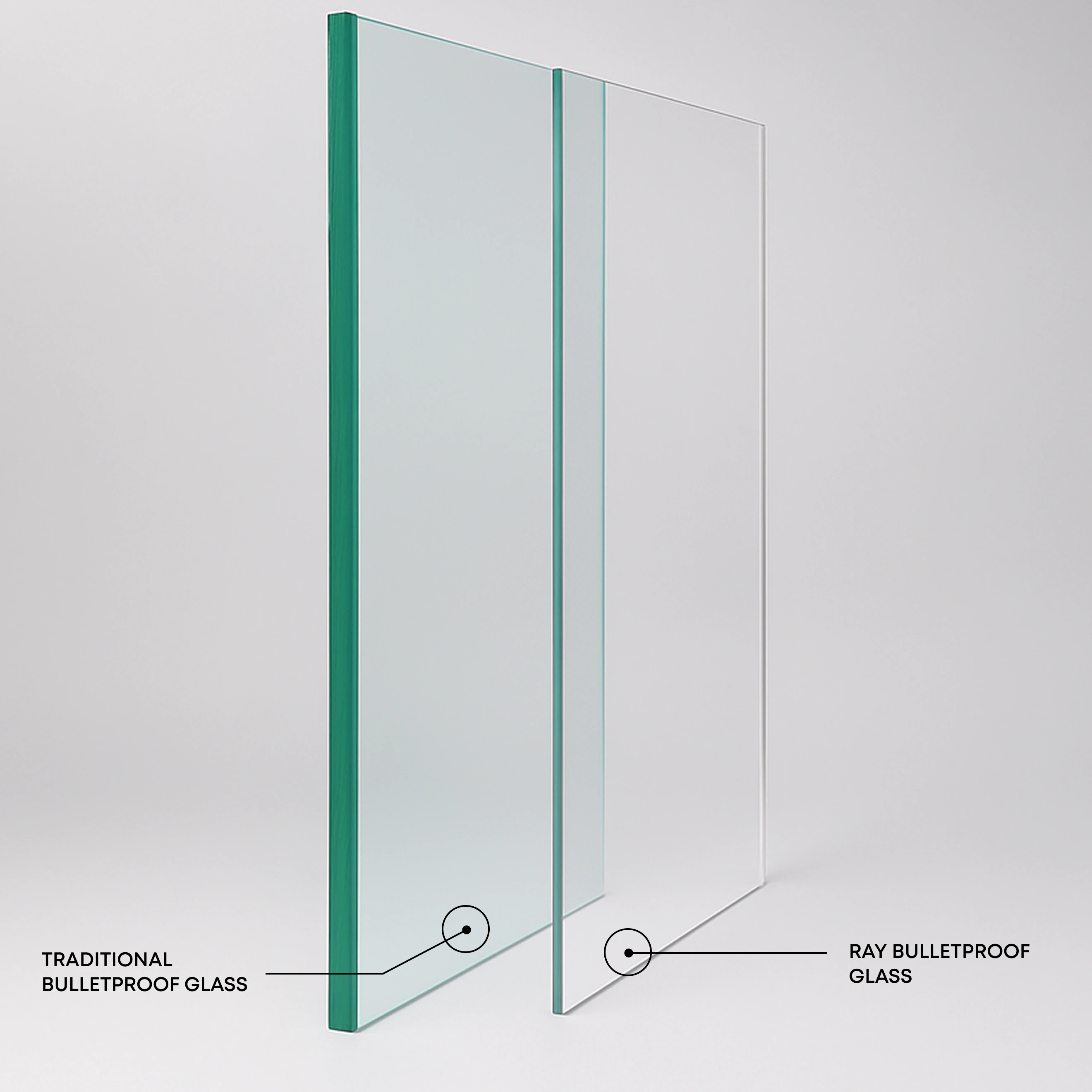

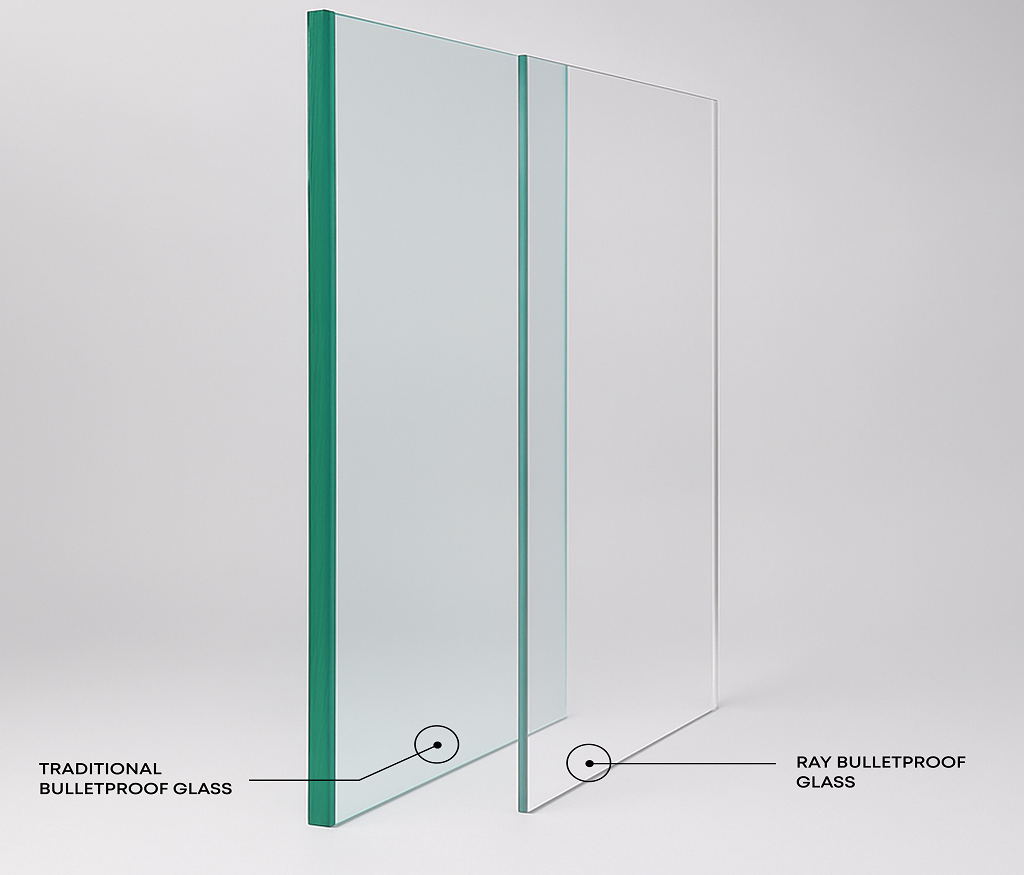

Traditional green-edged bulletproof glass beside thinner, clearer Ray bulletproof glass for comparison
Comparison of traditional green-edged bulletproof glass and clearer Ray bulletproof glass, interior fit out

Crystal-Clear Protection

Unlike conventional bulletproof glass, which often carries a noticeablegreen tint due to multiple layers of standard glass, our advanced ballisticglass is engineered for optical clarity. The result is a secure barrier thatremains transparent and color-neutral, ensuring unobstructed views andseamless integration into luxury architecture. Where others compromiseaesthetics for safety, we deliver both.

Crystal-Clear Protection

Unlike conventional bulletproof glass, which often carries a noticeable green tint due to multiple layers of standard glass, our advanced ballistic glass is engineered for optical clarity. The result is a secure barrier that remains transparent and color-neutral, ensuring unobstructed views and seamless integration into luxury architecture. Where others compromise aesthetics for safety, we deliver both.

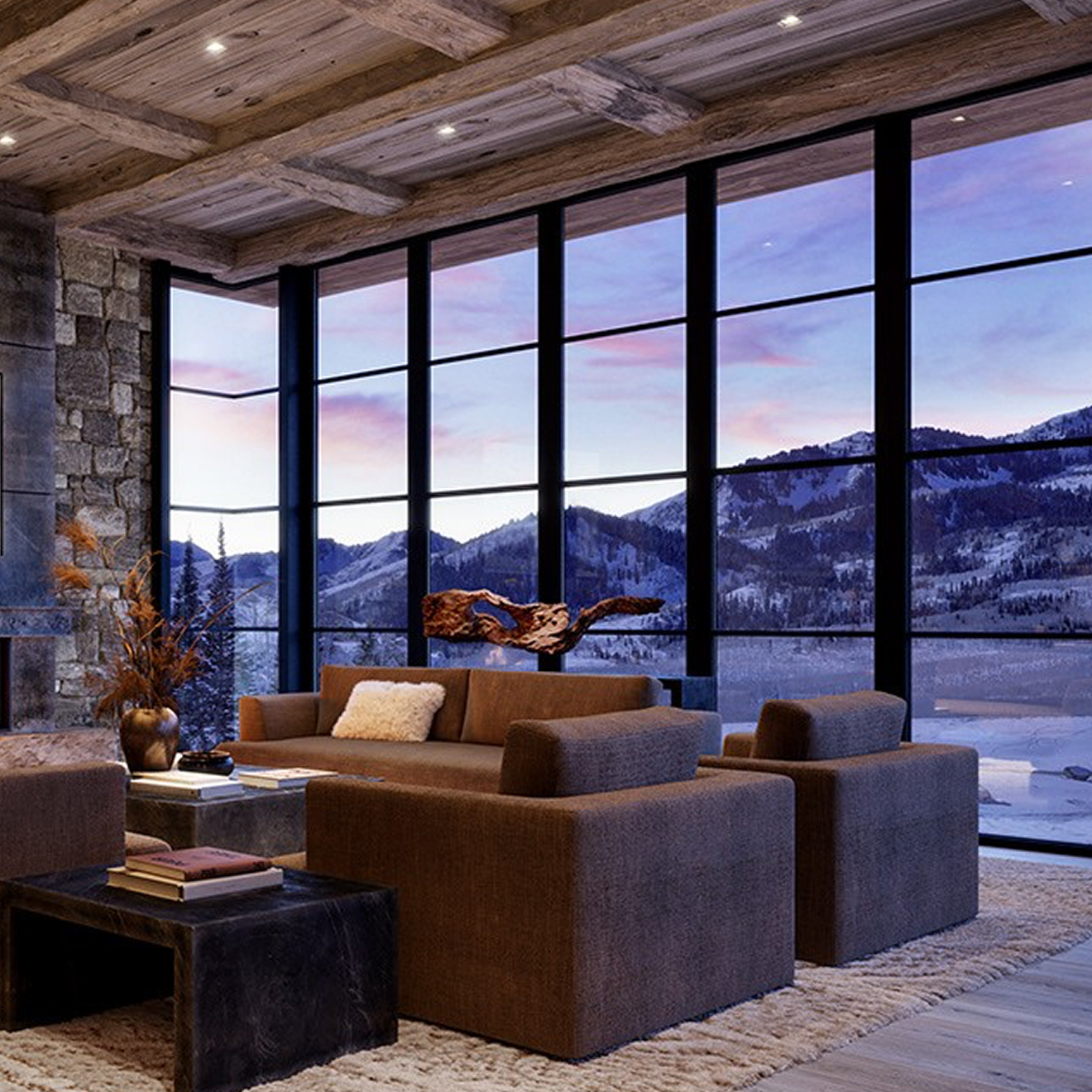

Living room with bulletproof floor-to-ceiling windows facing a snowy mountain view

SECURE ALL WINDOWS AT ALL LEVELS

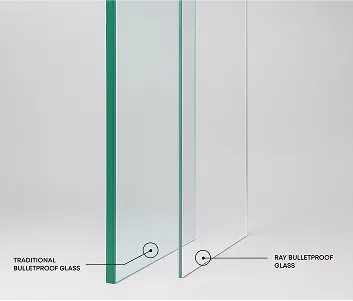

Side-by-side comparison of traditional bulletproof glass with Ray bulletproof glass

SECURE ALL WINDOWS
AT ALL LEVELS

Villa elevation drawing labelling burglar resistant and bulletproof windows, pool glass fence and armored garage door

bullet proof glass products

Our bespoke joinery services encompass a wide array of custom solutions, beginning with expertly crafted doors that enhance both functionality and style. We specialize in kitchen systems designed to optimize space and aesthetics, ensuring every element is tailored to your needs.

TYPES OF BULLET PROOF GLASS

Architectural considerations, security requirements, and threat levels all play a role in choosing the best bulletproof glass. Rayfitout provides specially designed ballistic glass solutions that guarantee optimal protection without sacrificing style or functionality.
‍

left ArrowPrevious slide

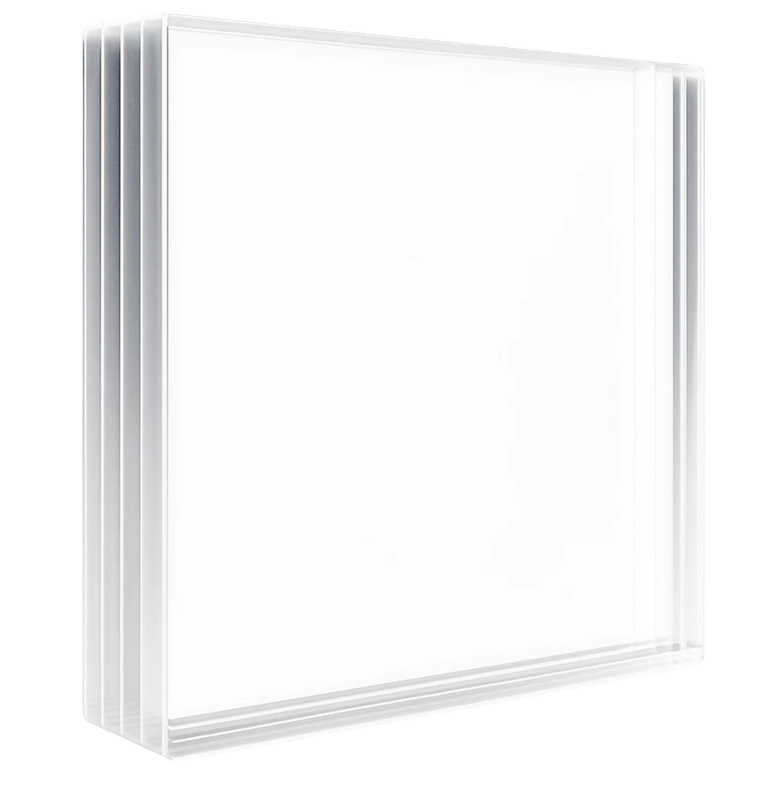

Layered acrylic bulletproof glass panel sample showing its stacked edge

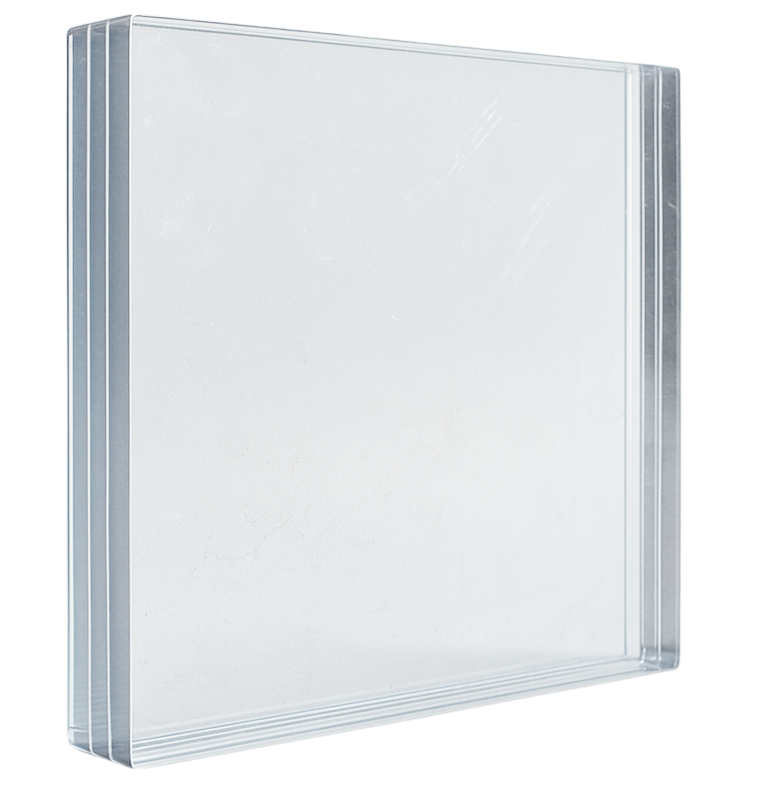

Polycarbonate bulletproof glass panel sample

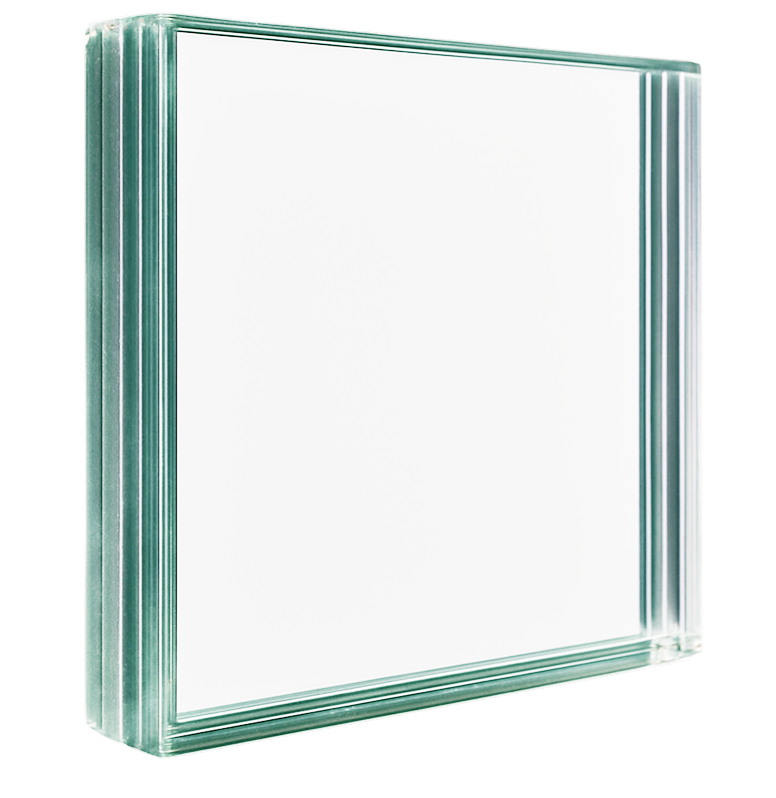

Glass-clad polycarbonate bulletproof glass panel sample
Layered insulated bullet-resistant glass panel sample
Right ArrowNext slide

Acrylic Bullet Proof Glass

Bullet proof acrylic offers a single-piece solution, between 1.25 and 1.375 inches thick depending on the level of security needed. While incredibly tough, it can still be cut and shaped to fit your space perfectly. Choose from UL Levels 1 and 2 for protection against handgun threats, all while maintaining excellent clarity.

APPLICATIONS

Interior doors icon

INTERIOR
WINDOWS & DOORS

THICKNESS

11/4” TO 13/8”

PROTECTION LEVEL

Protection level 2 icon

FORCED ENTRY PROTECTION

Cross mark

LIGHT TRANSMISSION

90%

WEATHERABILITY

Included feature check mark

SENSITIVE TO EXPOSURE AND SOLVENTS.

Included feature check mark

ABRASION-RESISTANT COATING AVAILABLE.

Polycarbonate Bullet Proof Glass

Polycarbonate designed for ballistic resistance fulfills all security prerequisites concerning both forced entry and projectile impact. Containment glazing (CG) grades are specifically tailored to offer protection against forceful entry attempts utilizing heavy tools such as sledgehammers and axes. Conversely, bullet-resistant (BR) and multiple shot (MS) grades were meticulously developed to provide ballistic protection, capable of withstanding sustained fire from high-caliber automatic weapons.

APPLICATIONS

Interior doors icon

INTERIOR
WINDOWS & DOORS

THICKNESS

3/4” TO 11/4”

PROTECTION LEVEL

Protection level 3 icon

FORCED ENTRY PROTECTION

Feature included check mark

LIGHT TRANSMISSION

80%

WEATHERABILITY

Included feature check mark

SENSITIVE TO EXPOSURE AND SOLVENTS.

Included feature check mark

ABRASION-RESISTANT COATING AVAILABLE.

GLASS-CLAD POLYCARBONATE

Glass-clad polycarbonate (GCP) represents a technologically advanced solution for applications demanding exceptional levels of security. This composite material exhibits remarkable resilience in high-traffic environments. Furthermore, GCP can be specifically engineered to withstand forced entry attempts, explosive detonations, and powerful hurricane-force winds. It is important to note that standard GCP configurations are primarily evaluated for ballistic protection. For applications requiring the utmost security, particularly those involving freestanding or fixed exterior barriers, ballistic-rated glass-clad polycarbonate offers an optimal solution.

APPLICATIONS

Interior and exterior doors icon

INTERIOR OR EXTERIOR
WINDOWS AND DOORS

THICKNESS

11/4” TO 13/8”

PROTECTION LEVEL

Protection level 0 icon

FORCED ENTRY PROTECTION

Feature included check mark

LIGHT TRANSMISSION

60-75%

WEATHERABILITY

Included feature check mark

HIGHTENED RESISTANCE TO
WEATHERING AND SOLVENT DAMAGE.

Insulated Bullet-Resistant Glass

Perfect for both indoor and outdoor applications, this material provides excellent light visibility while maintaining energy efficiency. It also boasts impressive bullet resistant capabilities, including protection against assaults and meeting UL1 standards

APPLICATIONS

Interior doors icon

INTERIOR
WINDOWS & DOORS

THICKNESS

15/16” TO 11/4”

PROTECTION LEVEL

Protection level 0 icon

FORCED ENTRY PROTECTION

Feature included check mark

LIGHT TRANSMISSION

90%

WEATHERABILITY

Included feature check mark

HIGHTENED RESISTANCE TO
WEATHERING AND SOLVENT DAMAGE.

Ballistic Classes for Bullet Proof Glass

BULLET TEST CONDITION
RESISTANCE CLASS WEAPON & CALIBRE MASS [G] +/-1 ENERGY [JOULE] SHOT DISTANCE [m] +/-0,5 IMPACT SPEED [m/s] +/-10 RECOMMENDATION
BR1 Handgun icon .22 LR Handgun - L/RN 2.6 168 10 360 Handgun icon Residential Properties in Low Risk Areas
BR2 Handgun icon 9mm Luger - FJ1/FN/SC 8.0 640 5 400 Handgun icon Residential Properties in Moderate Risk Areas
BR3 Handgun icon .357 Magnum - FJ1/CB/SC 10.2 943 5 430 Handgun iconResidential Properties in Moderate Risk Areas
BR4 Handgun icon .44 Magnum - FJ2/FN/SC 15.6 1510 5 440 Handgun icon Residential Properties in High Risk Areas
BR5 Handgun icon 5.56×45 Rifle - FJ/PB/SCP1 4.0 1805 10 950 Handgun icon Military and Government
BR6 Handgun icon 7.62×51 Rifle - FJ/PB/SC 9.5 3272 10 830 Handgun icon Military and Government
BR7 Handgun icon 7.62×51 Rifle - FJ/PB/HC 9.8 3295 10 820 Handgun icon Military and Government
SG1* Handgun icon 12/70 Shotgun - Lead shotgun 31 2734 10 420 Handgun icon Military and Government
SG2* Handgun icon 12/70 Shotgun - Lead shotgun 31 2734 10 420 Handgun icon Military and Government

Ballistic Classes For Bulletproof Glass In Accordance With EN 1063

BR1

Resistance class

BR1

WEAPON & CALIBRE
Icon: pistol marking handgun protection rating

22 LR Handgun - L/RN

MASS [G] +/-1

2.6

ENERGY [JOULE]

168

TEST CONDITION

SHOT DISTANCE [m] +/-0,5

10

Impact Speed [m/s] +/-10

360

Recommendation
Icon: modern two-storey house for residential protection use

Residential Properties
In Low Risk Areas

BR2

Resistance class

BR2

WEAPON & CALIBRE
Icon: semi-automatic pistol for the handgun threat level

9mm Luger - FJ1/RN/SC

MASS [G] +/-1

8.0

ENERGY [JOULE]

640

TEST CONDITION

SHOT DISTANCE [m] +/-0,5

5

Impact Speed [m/s] +/-10

400

Recommendation
Icon: two-storey house with garage for residential villa use

Residential Properties In
Moderate-Risk Areas

BR3

Resistance class

BR3

WEAPON & CALIBRE
Icon: revolver marking magnum handgun protection rating

.357 Magnum - FJ1/CB/SC

MASS [G] +/-1

10.2

ENERGY [JOULE]

943

TEST CONDITION

SHOT DISTANCE [m] +/-0,5

5

Impact Speed [m/s] +/-10

430

Recommendation
Icon: flat-roof single-storey house for residential use

Residential Properties In
Moderate-Risk Areas

BR4

Resistance class

BR4

WEAPON & CALIBRE
Icon: revolver for the revolver threat level

.44 Magnum - FJ2/FN/SC

MASS [G] +/-1

15.6

ENERGY [JOULE]

1510

TEST CONDITION

SHOT DISTANCE [m] +/-0,5

5

Impact Speed [m/s] +/-10

440

Recommendation
Icon: single-storey flat-roof home for private residence use

Residential Properties In
High-Risk Areas

BR5

Resistance class

BR5

WEAPON & CALIBRE
Icon: assault rifle marking rifle protection rating

5.56×45 Rifle - FJR2/PB/SCP1

MASS [G] +/-1

4.0

ENERGY [JOULE]

1805

TEST CONDITION

SHOT DISTANCE [m] +/-0,5

10

Impact Speed [m/s] +/-10

950

Recommendation
Icon: columned civic building for commercial and institutional use

Military and
Goverment

BR6

Resistance class

BR6

WEAPON & CALIBRE
Icon: assault rifle for the high-powered rifle threat level

7.62×51 Rifle - FJ1/PB/SC

MASS [G] +/-1

9.5

ENERGY [JOULE]

3272

TEST CONDITION

SHOT DISTANCE [m] +/-0,5

10

Impact Speed [m/s] +/-10

830

Recommendation
Icon: columned public building for institutional projects

Military and
Goverment

BR7

Resistance class

BR7

WEAPON & CALIBRE
Icon: assault rifle for the rifle protection level in the rating table

7.62×51 AP Rifle - FJ2/PB/HC1

MASS [G] +/-1

9.8

ENERGY [JOULE]

3295

TEST CONDITION

SHOT DISTANCE [m] +/-0,5

10

Impact Speed [m/s] +/-10

820

Recommendation
Icon: classical columned building for government and commercial use

Military and
Goverment

SG1

Resistance class

SG1*

WEAPON & CALIBRE
Icon: shotgun marking shotgun protection rating

12/70 Shotgun-Lead shotgun shot

MASS [G] +/-1

31

ENERGY [JOULE]

2734

TEST CONDITION

SHOT DISTANCE [m] +/-0,5

10

Impact Speed [m/s] +/-10

420

Recommendation
Icon: columned building marking commercial application of this rating

Military and
Goverment

sg2

Resistance class

SG2*

WEAPON & CALIBRE
Icon: shotgun for the shotgun threat level

12/70 Shotgun - Lead shotgun shot

MASS [G] +/-1

31

ENERGY [JOULE]

2734

TEST CONDITION

SHOT DISTANCE [m] +/-0,5

10

Impact Speed [m/s] +/-10

420

Recommendation
Icon: columned institutional building for higher-security projects

Military and
Goverment

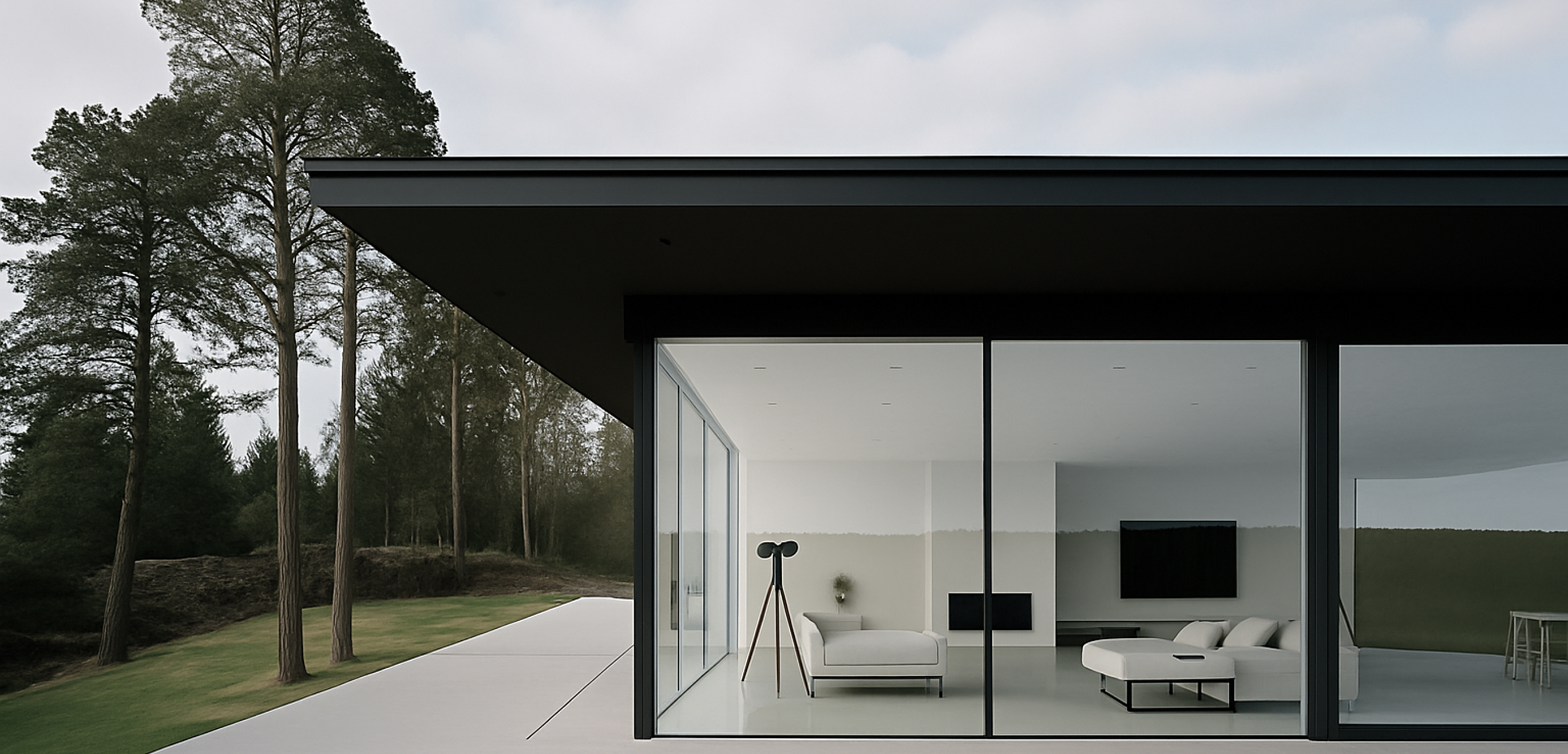

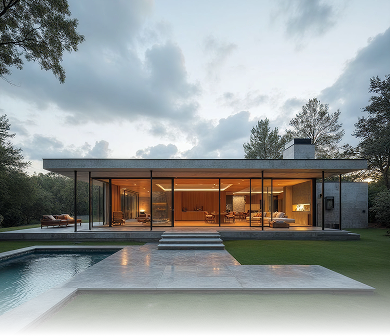

A minimalist house with a flat, dark roof and expansive bulletproof glass panels

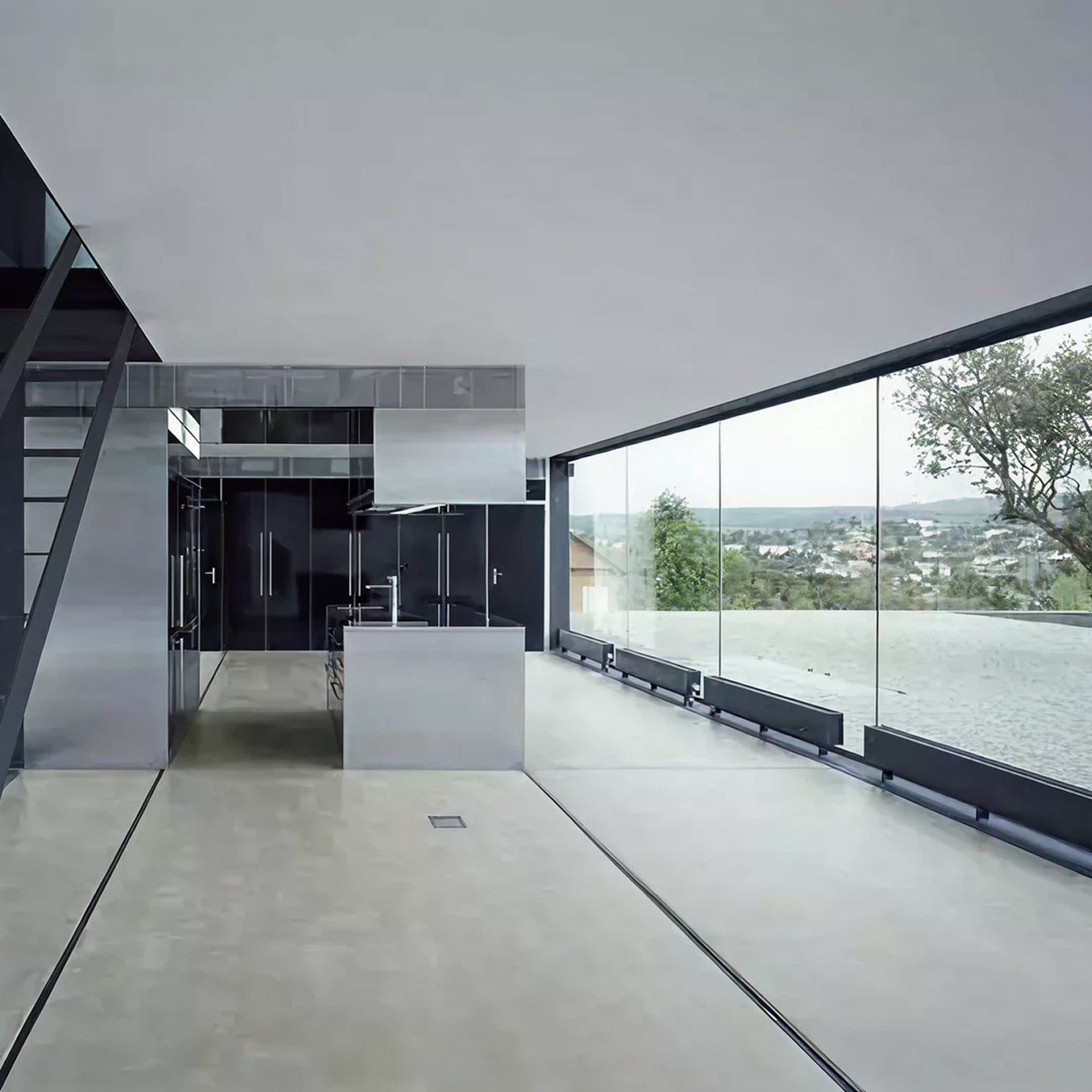

Modern minimalist interior with cabinetry and a metal staircase, featuring floor-to-ceiling bulletproof glass windows

How Does Bullet Proof Glass Work?

Bulletproof glass, more accurately called bullet-resistant glazing, is a multi-layer laminate typically composed of alternating layers of glass and polycarbonate or acrylic. Upon impact, the outer glass layer shatters to dissipate energy, while the inner polymer layers deform and absorb the bullet’s force, preventing penetration and controlling spall. The glass’s thickness and composition vary by threat level—about 25 mm for handgun resistance (UL 752 Level 1–3) and up to 75 mm for high-powered rifle rounds (Level 8). It’s tested using standardized firearms and velocities; to pass, it must prevent full penetration and minimize backface debris. The systems are heavy (up to 100 kg/m²), require reinforced frames, and are engineered for durability, often lasting 20+ years with UV-stable coatings and structural integrity under wide temperature ranges.

Advanced Composition and Manufacturing Process

Rayfitout uses multi-layered construction techniques to ensure maximum security, durability, and impact resistance in our bulletproof glass solutions. While laminated glass reinforced with polyvinyl butyral (PVB) or SentryGlas improves structural integrity, our Glass-Clad Polycarbonate (GCP) systems provide a lightweight yet highly capable barrier. For increased safety, panels made of acrylic and polycarbonate offer non-spalling protection, reducing fragmentation upon impact. Advanced lamination techniques are used in our manufacturing process where several layers are bonded together to efficiently absorb ballistic impact. Glass is further strengthened by chemical hardening processes, which over time increase its durability and shatter resistance. Furthermore, polycarbonate interlayers improve strength and flexibility, guaranteeing that our bulletproof glass satisfies the strictest safety regulations and fits in perfectly with upscale architectural designs.

Luxury living room with floor-to-ceiling bulletproof glass windows

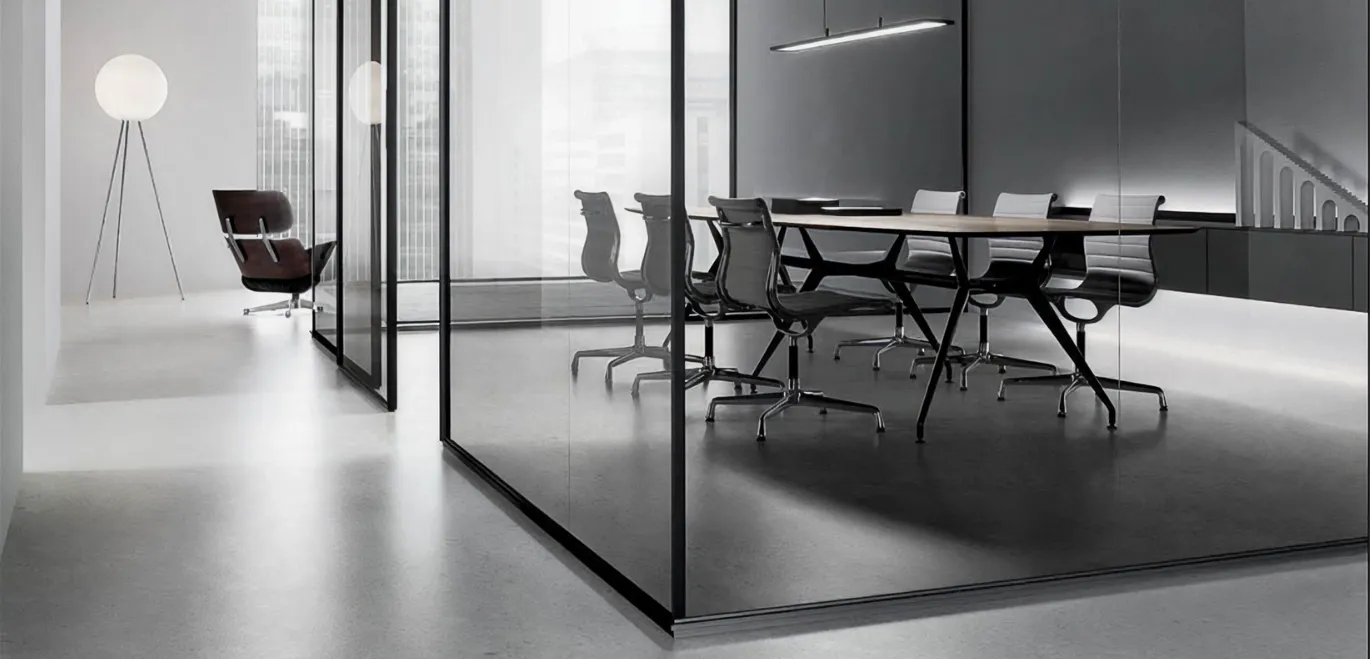

Large conference area featuring minimally framed bulletproof glass walls

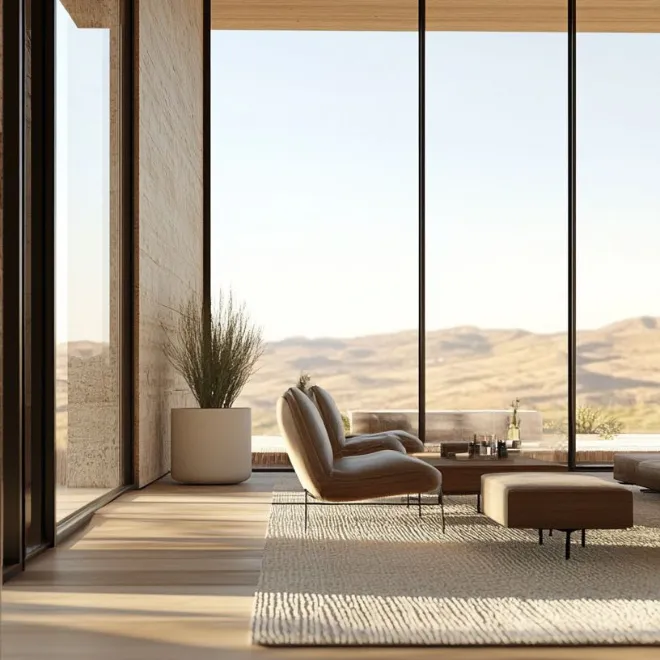

Modern desert home interior featuring bulletproof glass windows that create a secure connection with the natural landscape

Applications & Integration
with Security Systems

Rayfitout’s bulletproof glass solutions are engineered to support high-security interiors without disrupting the visual harmony of spaces. We design installations that secure private residences, executive offices, and confidential zones, enhancing the overall spatial design. Our bulletproof glass integrates with biometric access and high-level entry management systems, enabling controlled movement within secured areas. It pairs with custom-engineered ballistic-resistant doors and structural elements, reinforcing protection across critical zones. We also offer smart glass options, enabling dynamic privacy settings that adapt to different interior needs. Connected to surveillance and alarm networks, these solutions come equipped with embedded sensors for rapid threat response, delivering a security layer that aligns with modernized interior environments.

Ballistic Glass Safety Standard

Rayfitout provides bulletproof glasses certified under globally recognized protection levels, ensuring advanced safety for high-value interiors. Our offerings meet UL 752 (USA) up to level 4 and EN 1063 (Europe) up to BR6 standards, widely accepted in security-conscious environments. UL 752 focuses on firearm threats such as 9mm handguns, Magnum rounds, and high-power rifles. EN 1063 expands classification to include rifle calibers, armor-piercing rounds, and shotgun threats, offering a broader framework suitable for projects across global markets. Dual certification enhances trust, making our solutions ideal for secure villas, executive spaces, and private estates that require enhanced security.

UL752 and EN1063 ballistic certification marks for Ray bulletproof glass with Rayfitout protection badge
Modern desert home interior featuring bulletproof glass windows that create a secure connection with the natural landscape

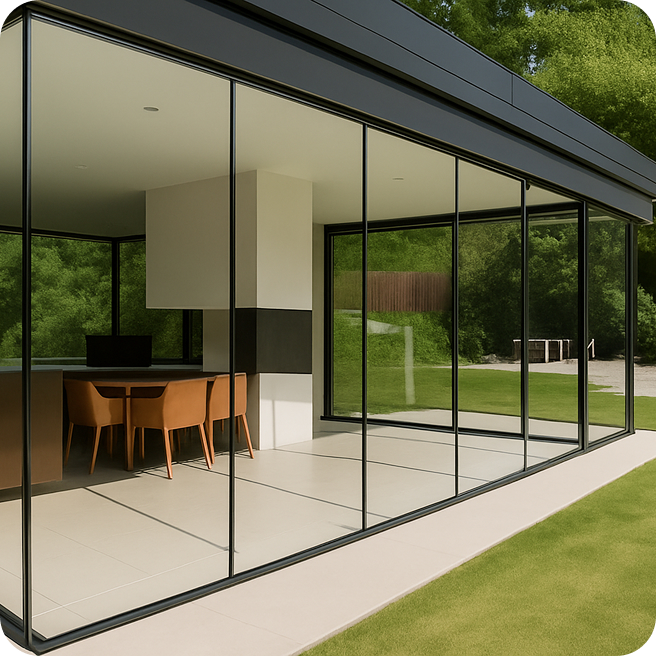

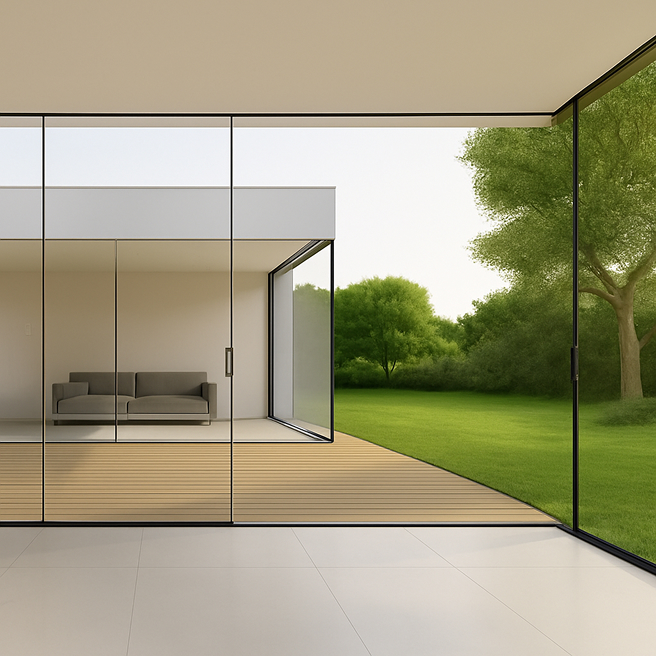

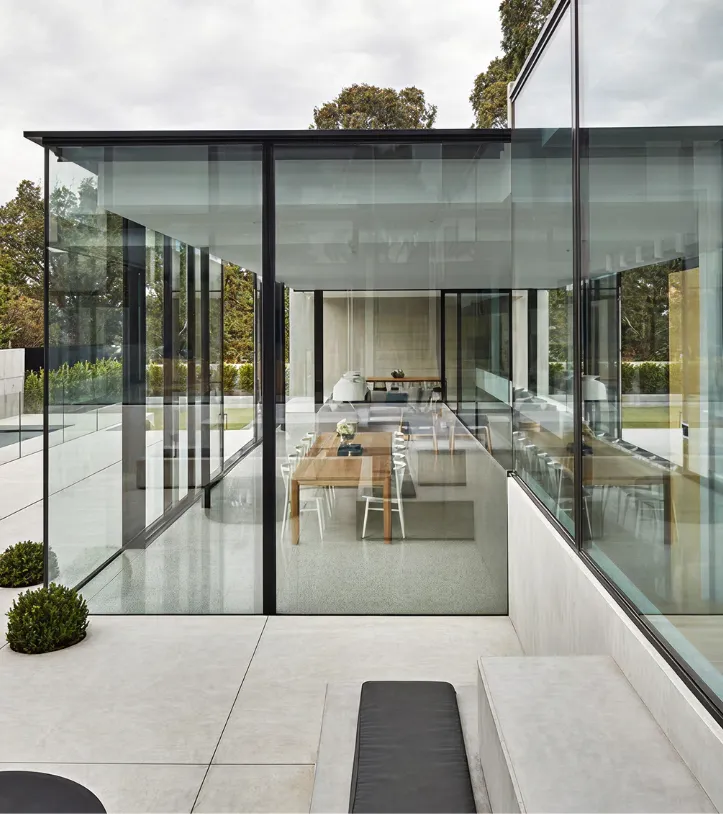

Minimalist house featuring transparent bulletproof glass walls that reveal a dining area

Ray Burglar Resistant Window

Rayfitout’s burglar-resistant windows are developed to withstand manual break-in attempts using tools such as crowbars, hammers, and similar implements. The glass is constructed with specialized laminated layers that absorb repeated impacts without allowing penetration. Framing systems are reinforced to maintain structural integrity under prolonged force, creating a delay barrier that supports broader security protocols. These solutions are tested under recognized burglary resistance classifications and are built for areas requiring controlled physical access. Reach out to explore how our burglar-resistant systems can elevate your space’s security without compromising style.

DISCOVER BULGRAR RESISTANT WINDOWS

LOOKING FOR A TRUSTED INTERIOR DESIGNER?

Drop an inquiry

FREQUENTLY ASKED QUESTIONS

FREQUENTLY ASKED QUESTIONS

How does bulletproof glass work?

Bulletproof glasses are used to absorb and disperse bullet energy and prevent penetration. Bulletproof glass is created by layering materials like polycarbonate and laminated glass.

Is tempered glass bulletproof?

Tempered glass is not bulletproof. Tempered glass can shatter under high-impact force and is not designed to stop bullets.

Which glass is used in bulletproof glass?

Acrylic, polycarbonate, or glass-clad polycarbonate is commonly used in layered constructions for bulletproof glass.

How much does bulletproof glass cost?

The cost of bulletproof glass can vary depending on the level of ballistic protection, size, thickness, and installation requirements of the project.

How heavy is bulletproof glass?

The weight of a bulletproof glass depends on its thickness and composition. A bullet proof glass can weigh anywhere from 25 to 80 kg/m².
